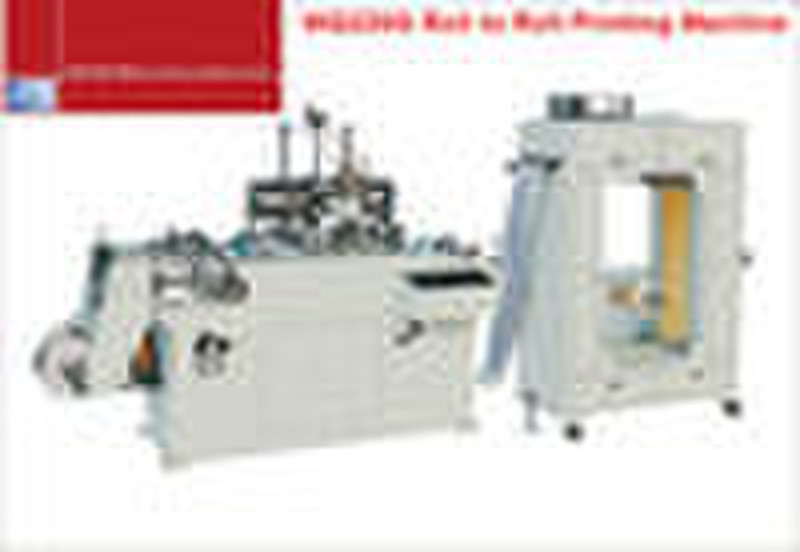

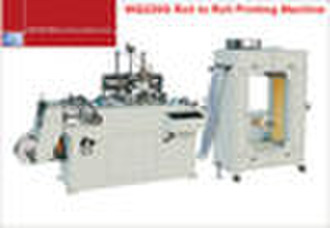

REEL TYPE SILK LABEL SREEN PRINTING MACHINE(roll t

Characteristics: WQ-320 REEL TYPE SILK LABEL PRINTING MACHINE(REEL TYPE SILK SCREEN PRINTING MACHINE,ROLL MATERIAL PRINTING MACHINE)is used for printing ,drying ,and rewinding on reel material of PVC, OPP, Dacron, hologram label, adhesive paper, etc. The materials conveying controlled by servomotor, the main transmission part adopts pneumatic device, and the printing position is tracked and controlled by photocell. The machine has the characteristic of high accurate overprinting, steady material-transfer, automatic counting and alarming, convenient adjusting and compact structure, etc. Main specification: Printing speed 10-50time/minute Max unwinding diameter 450mm Max width of paper 320mm Max printing width 300mm Max printing length 320mm Localization accuracy ±0.15mm Main motor power 1200w Oven power 4100w Atmospheric pressure 4.5-6kg/cm2 Main machine dimension (L×W×H) 2400×950×1500mm Oven machine dimension (L×W×H) 1750×600×1800mm Machine weight About 1100kg
